MSRP: $1,716.00
Specs

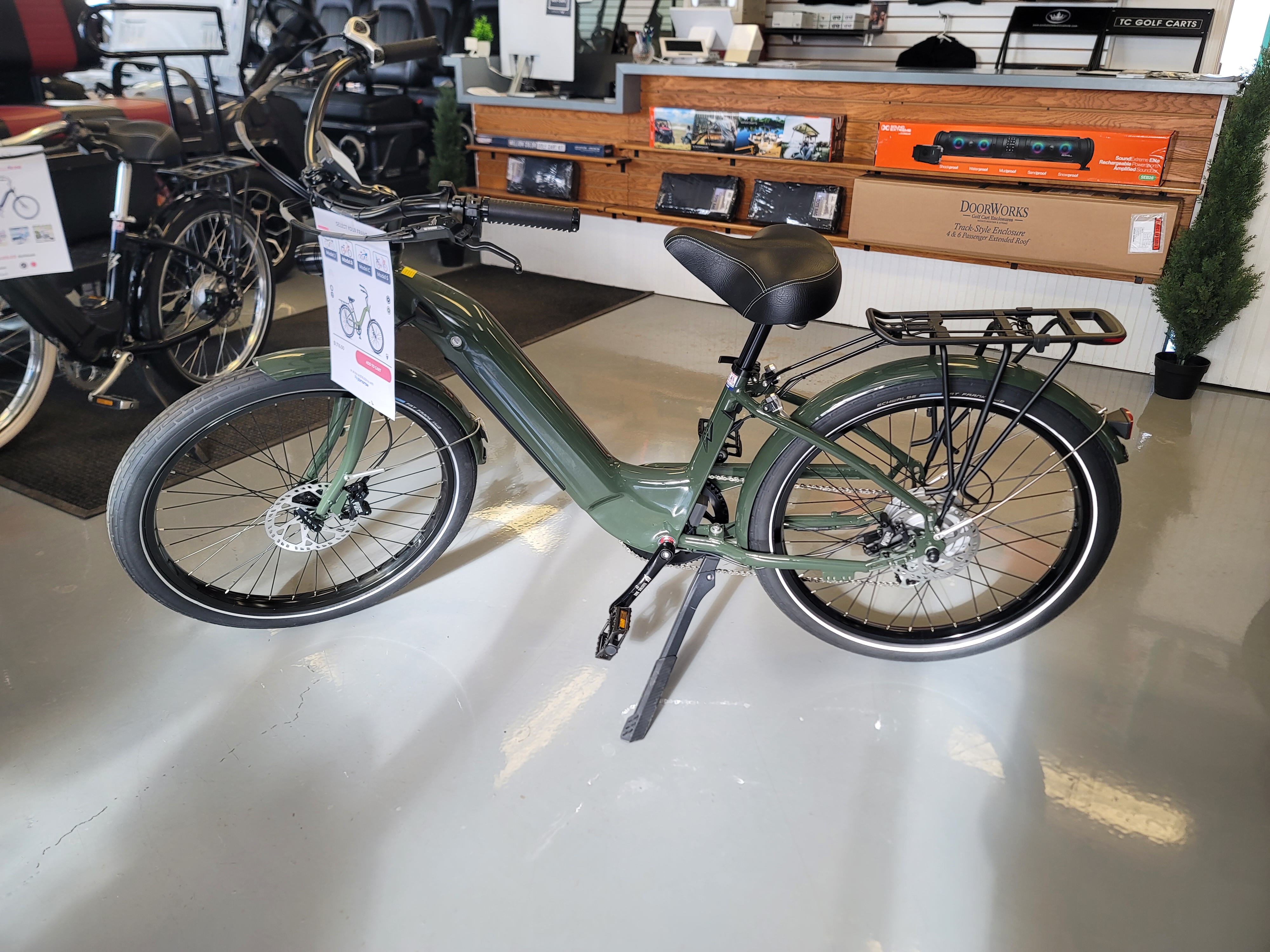

| Model | Model R |
| Motor* | 10 year warranty 500w nominal 750w programmed max output due to regulation 1250w max output possible |
| Battery | 60 Miles (12 Ah) EBC approved and certified Lithium-Ion NMC Cells (2 year warranty*) |
| Charger | 2.5 Amp Smart Super Charger with Smart charging technology, cooling fan, aluminum cover & 3 prong charging port for safety |
| Brakes | 4 Piston, Hydraulic Disc Brakes, 180 mm Stainless steel (1.8 mm thick) Comfort grip levers with motor cutoff safety sensor |
| Chain | Stainless Steel, Durable, Rust Resistant, Low Maintenance Patented Weather Coating |
| Drivetrain | 58T Chainring Sealed bearings for durability, low maintenance and safety over time Engineered specifically for ease of rider operation, 5 Power Assist Levels |
| Grips | Hand-Stitched Leather Aluminum secure ends for Non slip |
| Handlebars | Crusier Style for upright position |
| Kickstand | Motor Bike Grade, Heavy Duty Non-slip sole & wide reinforced rubber foot prevents slipping and sinking |
| LCD Screen | Multi Level, user friendly, Interactive, Color LCD Display with USB Charging Port for phone and other accessories |
| Lights | Front and Rear LED safety lights standard |
| Pedals | Large platform with comfort non-slip rubber with sealed bearings and dual reflectors |
| Wheels | Build in our factory - Dished, Trued and Tension perfectly ensuring efficient tracking, safety and range. Double Walled Rims, Stainless Resistant 13G Spokes, Brass Nipples, Sealed Bearings in Hub |
| Seat | Large super comfortable, high density foam with back bumpers for support and comfort. Chopper seat optional |
| Stem | Material: Alloy Stem Length: 120mm Bar clamp diameter: 25.4mm Quill: 25.4 x 180mm Adjustability: 0 - 60 degrees |
| Tires | Puncture Resistant, Reflective Side Walls with All weather rust proof Schrader valve - Wheel Size 26x2.25" or 24x2.25 |
| Throttle | Thumb Throttle |
| Top Speed | *Factory settings 20 mph throttle and 20 mph PAS (Can re-program to 28 mph PAS once confirmed with local city regulations. |
| Pedal Assist | Level 1-5 |
| Frame | Aluminum 6061, Hydro-formed frame |
| Weight | 53lb |
| Weight Limit | 420lb |
| Bottom Bracket | 124.5mm alloy cups, double snap seals for water and dirt protection |
| Crankset | 56T Alloy Chainring + 170 mm Crank in Alloy 1/2'" x 3/32 for multispeed w/o chainguard |
| Rear Cog | 16 rear cog |
| Rim | Multiple Freewheel. 14-28 Tooth 24 or 26"× 2" rim, double wall, 36 hole "13G stainless steel |
| Spokes | 36 spokes per rim |
| Tubes | Heavy Duty Schrader E-Bike Inner Tube, 24 or 26" x 1.75-2.125" |
| Hubs | 36 spoke hole, front wheel hub sealed cartridge bearings. 9mm quick release, 100mm axle 6 bolt disk rotor compatible |
| Seatpost | 30.4mm x 300mm |
| Seat Clamp | Quick release |
| Rider Height | 5' 2" - 6' 10" |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
